Cold saw machines are precision metal cutting machines designed to cut ferrous and non-ferrous materials with high accuracy and a clean finish. Unlike abrasive cutting machines, cold saws use a circular, toothed blade that cuts metal without generating excessive heat, preserving the material’s structural integrity.
These machines are widely used for cutting pipes, tubes, bars, rods, and profiles made of steel, aluminum, brass, and other metals. Cold saw machines ensure burr-free cuts, accurate angles, and consistent lengths, making them ideal for fabrication, automotive, construction, and engineering industries.
The Tube Mill is a combination of equipment installed in a line for the production of High Frequency Induction Welded (HFIW) carbon steel tubes. The process involved is cold forming of carbon steel strip in circular shape, longitudinal welding, sizing, converting into Rectangular/Square shape and cutting to pre determined length.
Raw material (Steel Strip) In form of a coil is uncoiled and fed Into forming section passing through the equipment of entry section. Entry section enables the tube mill to run continuously by using strip joining and accumulation equipment. Tube is formed in round shape passing through a set of driven and idler rollers of forming section before welding.
In welding section tube is longitudinally welded by using high frequency induction welding method. Outside bead is removed and formed in shape of scrap. The weld seam is ironed and tube passes through the cooling section. In sizing section, tube is formed to specified size and converted into Rectangular/Square shape. After sizing, tube Is cut to specifled length by using f Lying cutting equipment and delivered in collecting troughs passing through run out conveyor.

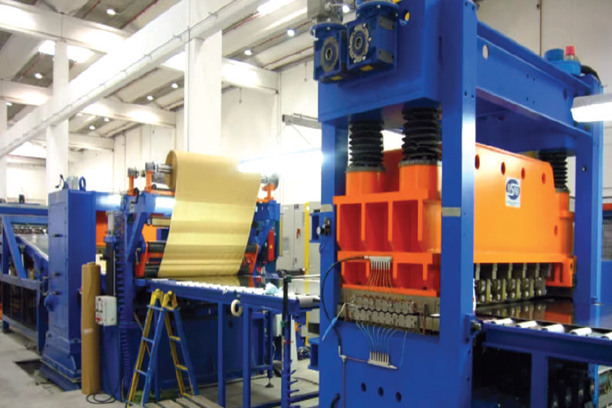

Cut To Length Lines Are Used For Uncoiling,
Straightening, Gauging, Cross Cutting To Length
And Stacking Work. It Perform Variety Of
Operational Functions Including Cut Sheet Leveling,
Edge Trim (If Required) Cut To Length And Stack
Sheet And Plates. The Cut To Length Line Can
Make Sure Of Accurate Feeding And Shearing. It
Can Be Widely Used In Cold Or Hot Rolling Carbon
Steel, Tinplate, Stainless Steel And All The Other
Kinds Of Metal Materials With Surface Coating. Cut
To Length Line Machines Is Controlled By PLC
System Or Manually As Required By The Customer.
It Has PLC Controlled Single Shaft Feeder, The
Information Of Length, Shearing Numbers And
Speed Can Be Put To The HΜΙ.
When The Need Shearing Number Is Reached The
Line Can Stop Automatically. The Line Speed Can
Be Adjusted. It Has A Gauge With High Precision
And Whole Line Can Work Automatically And
Operate Easily Thereby Producing Smooth Sheets.
Various Components Are Included In Cut To Length
Machines Like Coil Car Decoiler, Entry Support
Device, Width Adjuster Device, Straightening
Machine, Gauge Table, Shearing Machine, Run Out
Table, Pneumatic Discharge And Stacker Device,
Unloading Table, Pneumatic System, Electrical
System With Computer PLC Program Control,
Hydraulic System Etc.

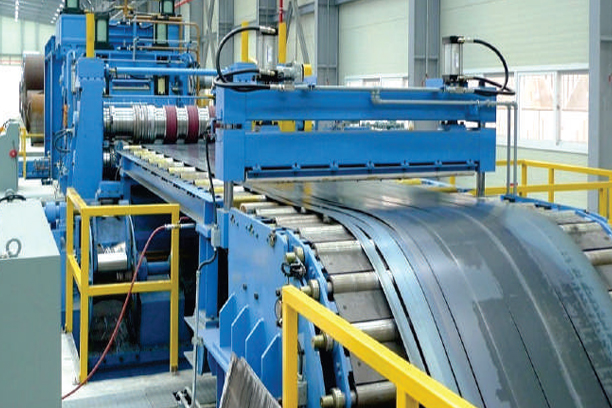

The INDUCTO TECH Slitting Line is designed for the precise and efficient slitting of steel coils into narrower strips for subsequent processing. Engineered for high-speed operation, this line ensures tight tolerances and minimal edge burr, making it ideal for a wide range of steel grades and thicknesses.
